Guaranteed Foundation Push Pier Solutions by #1 Rated Local Experts
Foundation Push Piers: The Ultimate Solution for Foundation Settlement
Is your home’s foundation sinking? Settlement occurs when the soil beneath your home can no longer support its weight, leading to structural damage like cracked bricks and sticking doors. At BAY Crawl Space & Foundation Repair, we provide permanent stabilization using the industry’s most advanced technology: the Titan SP-90 Push Pier System.
What Are Foundation Push Piers?
Foundation push piers (or resistance piers) are high-strength steel columns driven deep into the earth to bypass weak, shifting topsoil. They reach down to “competent” load-bearing strata or bedrock, effectively transferring the weight of your home onto a rock-solid, permanent “stilt” system.
Technical Specifications: The Titan SP-90
We exclusively use the Titan SP-90, an American-made system engineered for maximum durability:
- Load-Bearing Capacity: Rated for an ultimate capacity of 90,000 lbs (90 kips) per pier.
- High-Strength Steel: Fabricated from ASTM A500 grade steel with a minimum yield strength of 50 ksi.
- Certifications: ICC-ES certified (ESR-4914) to meet the most rigorous building safety standards.
- Corrosion Resistance: Features heavy-duty, industrial-grade steel designed to last the life of the structure.

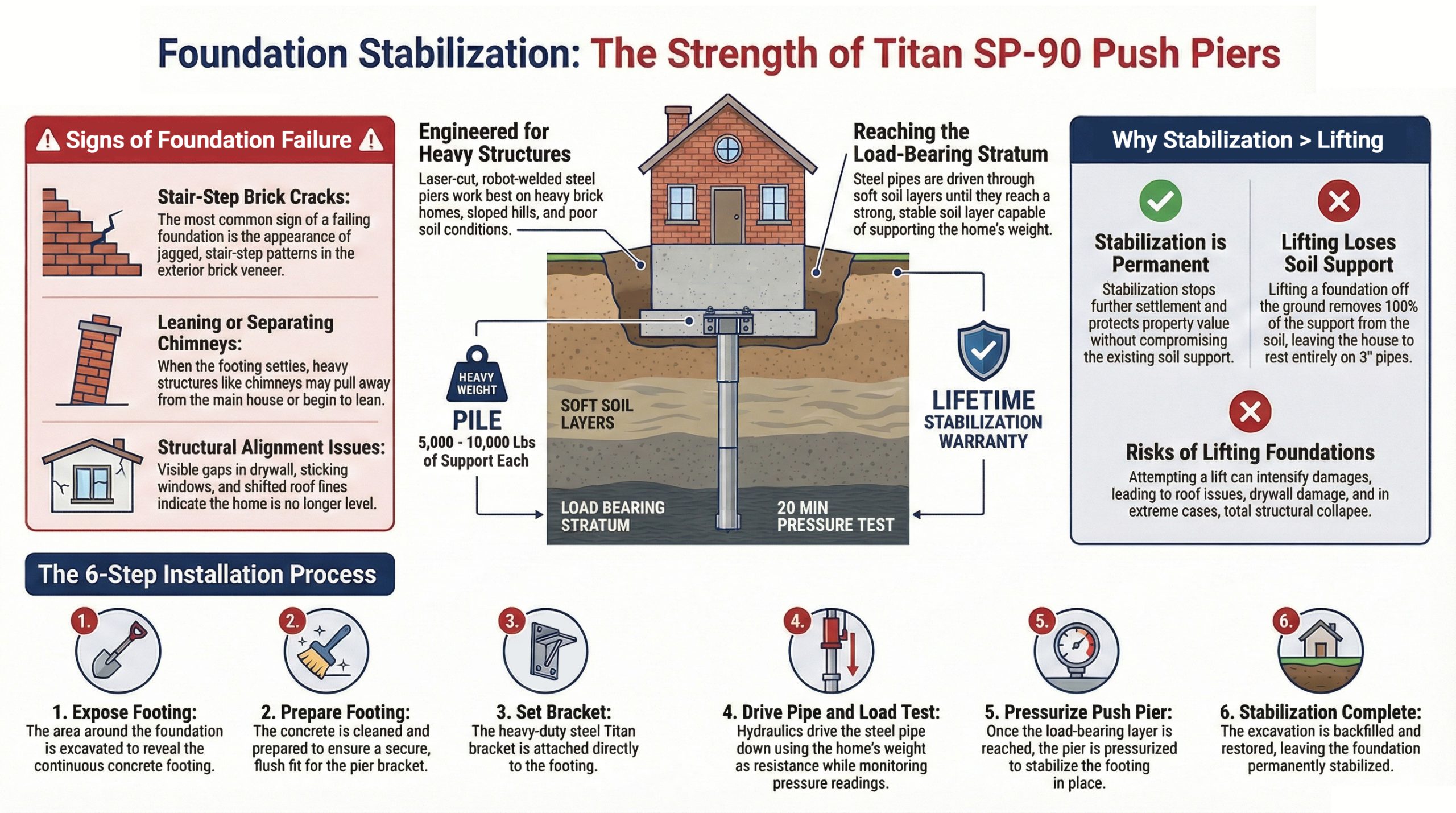

Our 6-Step Installation Process
Our installation process is precise and minimally invasive. We monitor every pound of pressure to ensure your home is fully supported.
- Site Excavation: We dig small, approximately 3-foot square access points at each pier location to expose the concrete footing.
- Footing Preparation: The bottom and vertical face of the footing are smoothed and squared to ensure a perfect, flush fit for the pier bracket.
- Bracket Mounting: The heavy-duty Titan bracket is attached directly underneath and alongside the footing.
- Driving the Pier: Using a hydraulic drive stand and the weight of your home as resistance, we drive steel pier sections straight down through a pile guide sleeve.
- The Pressure Test: Once we reach the load-bearing soil layer, we conduct a “Pressure Test.” This ensures the pier can hold the specific PSI required to support your home indefinitely.
- Final Stabilization: The final pier section is cut to length, a cap plate is installed, and the weight of the home is permanently transferred to the pier with threaded fastener nuts.
Why We Prioritize Stabilization Over Lifting
While some resources suggest “lifting” a home back to its original position, BAY Crawl Space specifically recommends stabilization.
- Protecting Structural Integrity: Lifting a home that has settled for years can cause significant “collateral damage,” creating new cracks in walls, framing, and masonry as the house is forced into a new position.
- Eliminating Voids: Lifting can create large air pockets (voids) under your foundation. Stabilization locks the home in place, keeping it firmly anchored to the soil.
- Predictable Results: Stabilization provides a “locked-in” fix. Once the Titan SP-90 is installed, the house is guaranteed to stop sinking, providing peace of mind without the risks of mechanical lifting.
Identifying Foundation Settlement
Common signs that your home needs push piers include:
- Stair-Step Cracks: Diagonal cracks in exterior brick mortar.
- Sticking Windows & Doors: Openings that are difficult to operate or out of square.
- Leaning Chimneys: A chimney that appears to be pulling away from the house.
- Interior Drywall Cracks: Diagonal cracks appearing over door frames or windows.
Virginia’s #1 Rated Foundation Experts
With over 400 collective years of experience, BAY Crawl Space & Foundation Repair is the trusted choice for homeowners in Hampton Roads and Northeastern North Carolina. We offer:
- Free, Expert Inspections: Our highly trained inspectors identify the root cause of your settlement.
- Lifetime Warranties: We stand behind the Titan SP-90 with a manufacturer’s lifetime warranty.
- Engineering-Grade Solutions: Every project is designed for long-term safety and stability.
Stop the sinking today. Call us at 757-460-0444 or click here to schedule your free inspection.
Foundation Push Piers: Frequently Asked Questions
What are foundation push piers?
Foundation push piers are high-strength steel columns used to stabilize a home’s foundation that has begun to sink or settle. They are driven deep into the ground using hydraulic pressure to bypass weak topsoil and reach stable, load-bearing strata or bedrock.
Why do I need push piers?
You likely need push piers if your home is experiencing “differential settlement,” which is caused by shifting or unstable soil beneath your foundation. Common indicators include:
- Stair-step cracks in exterior brick or masonry.
- Sticking windows or doors that are difficult to open or close.
- Interior drywall cracks, especially diagonal ones above door frames.
- Gaps in trim or separation between walls and ceilings.
What is the Titan SP-90 Push Pier System?
The Titan SP-90 is a premier, American-made piering system engineered for maximum durability. Key features include:
- Ultimate Capacity: Each pier can support up to 90,000 lbs.
- High-Strength Steel: Built with ASTM A500 grade steel for superior structural integrity.
- ICC-ES Certified: Meets the highest industry standards for safety and performance.
Can push piers lift my home back to its original position?
While push piers can be used to lift a structure, we specifically recommend against it in most cases. Our primary goal is stabilization—locking your home in place to prevent further sinking. Attempting to lift a settled home can cause significant secondary damage, such as new cracks in framing, drywall, and masonry.
How are push piers installed?
Our installation is a precise, 6-step process:
- Excavation: Small access points are dug at each pier location to expose the footing.
- Preparation: The footing is smoothed to ensure the pier bracket sits flush.
- Bracket Mounting: The heavy-duty bracket is installed directly underneath the concrete foundation & alongside the front face of the footing.
- Driving the Pier: Steel sections are hydraulically driven into the earth until they reach stable soil.
- Pressure Testing: Each pier is tested for 20 minutes to ensure it can support the required load.
- Load Transfer: Your home’s weight is permanently transferred from the soil to the new steel piers.
How long do foundation push piers last?
Push piers are designed to be a permanent solution. The Titan SP-90 system is constructed from high-grade steel and is backed by a manufacturer’s lifetime warranty, ensuring your home remains stable for as long as it stands.
Foundation Push Piers: Comparison of Foundation Solutions
Choosing the correct repair method depends on your home’s specific structural needs. While push piers are the “gold standard” for sinking foundations, other solutions, such as foundation jacks or wall anchors, serve different purposes.
| Feature | Titan SP-90 Push Piers | Foundation Jacks | Helical Piers |
| Primary Use | Stabilizing sinking perimeter foundations. | Supporting sagging interior floors/crawl spaces. | New construction or light structural support. |
| Method | Driven deep into the earth using hydraulic pressure. | Installed in crawl spaces to support floor joists. | Screwed into the soil like a giant corkscrew. |
| Capacity | Up to 90,000 lbs per pier. | Varies; designed for interior residential loads. | Moderate; ideal for lighter structures. |
| Best For | Heavy settlement, masonry cracks, and total stabilization. | Bouncy or uneven floors inside the home. | Deep soil instability where weight resistance is low. |
| Stability | Permanent transfer to load-bearing strata/bedrock. | Permanent support for internal framing. | Secure against shifting upper soil layers. |
Why Choose BAY Crawl Space & Foundation Repair?
We are Virginia’s #1 rated foundation experts because we prioritize your home’s long-term health over quick fixes.
- Expertise: Our team has over 400 collective years of experience in structural repair.
- Honesty: We never sell you a repair you don’t need. If stabilization is the safest route for your home, that is exactly what we will recommend.
- Award-Winning Service: Ranked #1 in Hampton Roads for 11 consecutive years (2015-2025) and recipient of the Angi Super Service Award for 8 years.
- Trust: With over 4,000 five-star reviews and a 4.9/5 star rating, our reputation for quality and fair pricing is unmatched.
Take the Next Step
Don’t wait for foundation cracks to get worse. Our free inspections include photos, clear explanations, and a customized plan for your home.
Call us today at 757-460-0444
